NEW!
500cc Linhai YAMAHA
ATV Farm 4x4 Quad Bike
Retails:$7499 boxed
ONLY $6999 - Out of Stock
Latest Design - All New Appearance for 2015
* Removable Passenger Back rest optional
AVAILABLE in RED,WHITE, YELLOW, BLUE, BLACK or GREEN (Only 1 x Red left)
Selectable 2WD/ 4WD with Diff Lock
2500Lbs Electric Winch + towbar
Electric Start + Backup Pull Start
Mirrors, Hand Protection Guards + Digital Dash
Have Questions? ... Want to Order? - Call David on 0416 071 242 or Email me
Comes with
12 MONTHS PARTS
WARRANTY!!*
* terms and conditions
Auto CVT Drive with Hi/Lo Range
Selectable 2WD/4WD or 4WD with Diff Locks
2500Lbs Electric Winch
Electric Start + Back up Pullstart
Rear Towbar + ball
25" Tyres on 12" Alloy Rims
|
Have Questions? ... Ready to Order? ->Contact US |
Description: 500cc Linhai Quad Bike
The
Linhai continues on a 7 year tradition. The 2015 model is all new
redesigned and reengineered. It has almost Zero carry over components.
The new slick body is product of European design and finesse. The front
nudge bar is discreet in its appearance and houses the 2500 pound winch.
The
update 500cc 4 valve engine has been refined and is now smoother than
ever. There is more usable torque and pick up has been better matched
so take off is completely seamless.
2015 Model gets a larger passenger seat with taller more supportive back rest which is completely removable when not in use.
With
selectable 4wd and ability to lock the front differential, the Linhai
500 is sure footed and will take you where you need to go. This 4wd
ability is not simply for extremes but is about getting around even on
the wet, muddy miserable days with easy and stability.

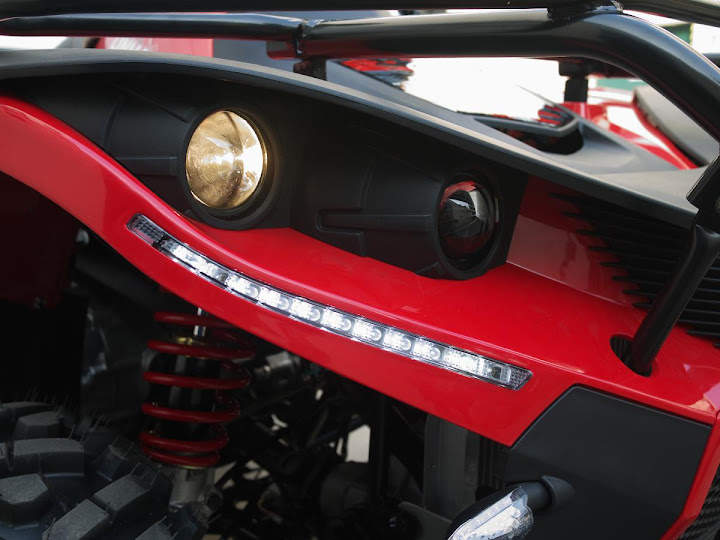

With standard winch, Day time Running Lights (DRL) and Aluminium wheels the 2015 Linhai 500 is a rugged beauty.
| Specifications 500cc Linhai Quad | |
|---|---|
| Engine | LH188MR, One cylinder, 4 stroke, water-cooled, SOHC |
| Displacement | 493cc |
| Bore x Stroke | 82mm x 87.5mm |
| Compression Ratio | 10.2:1 |
| Max Torque and Rev | 38.8 / 5500 Nm/r/min |
| Max Power Output | 26kw / 36HP |
| Max Speed | 89km/h |
| Start Type | Electric |
| Ignition Type | CDI |
| Transmission | CVT |
| Suspension / Brakes / Tyres | |
| Suspension Front | MacPhersan Suspension |
| Suspension Rear | Double A-Arm Indepenent Suspension |
| Shock Absorber | Spring Preloaded, Oil Damping |
| Braking | Hydraulic |
| Rims Front | AT25X8-12, 95kPa |
| Rims Rear | AT24X10-12, 95kPa |
| Dimensions | |
| Seat Height | 900mm |
| Product Dimensions | 2120mm × 1185mm × 1215mm |
| Clearance | 280mm |
| Wheelbase | 1285mm |
| Minimum Turning Diameter | 6100mm |
| Weight | 364kg |
| Towing Capacity | 200kg |
| Tank Capacity | 12.5L |
| Payload Capacity | 150kg |
SHIPPING
Capital
Cities:
|
Regional
Areas:
|
||||||||||||||||||||||||||||||||||||||||||||||||
| *** Shipping Rates for Regional & Remote areas of NT, WA, QLD, NSW, SA, VIC & Tas may be more than the regional rates listed. Email us your postcode/ town to confirm. We post via courier company and all deliveries can be tracked online, via the consignment note number. |
|
||||||||||||||||||||||||||||||||||||||||||||||||
Retails:$7499
ONLY $6999 - Out of Stock
|
Have Questions? ... Ready to Order? ->Contact US |
ALSO AVAILABLE NEW!! 300cc 4WD or 2WD Farm Quad Bike
